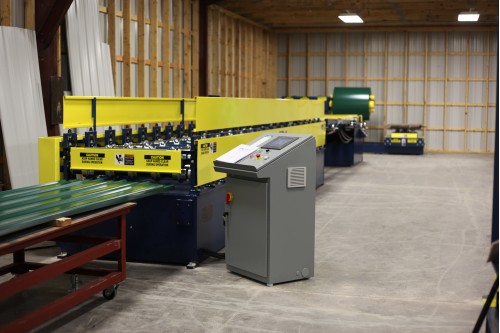

Signature Series

Single or Double Deck Rollformers

When cost and production matter most in the search for roll forming machines, MRS offers the Signature Series Rollforming Line.
Built to the same standards as the rest of the MRS product line, the Signature Series Rollformer is ideal for companies where higher volume production is not necessary.

  • cost effective pricing and innovative approach
  • slightly downsized from the Titan Series line.
  • tooling design, in-feed table, shear and multi-batch controls are the same as the Titan Series
  • Available as a single or double deck rollformer

Quality of the panel is never compromised.The Signature Series Rollforming Line is a great addition to any company!

Features

Single or Double Deck

Available as either a single or double deck rollformer. You can purchase a single deck and upgrade to the double deck when the time is right.

Dies

In-house designed and in-house precision machined dies are made from hardened industrial grade alloy and then chrome plated for longevity.

Dials

Dials on every stanchion provide precise and quick adjustment when running a variety of gauges. The quick adjustment allows you to adjust for various gauges and tensiles within minutes!

Multi-Batch Controls

Every Signature Rollformer comes with a UL approved control panel equipped with multi-batch controls. The colored touch screen allows the operator to enter orders in feet and inches or just in inches. The operator can enter up to 100 different lengths in 100 different batches. Visit the Multi-Batch Controls page for more information!

In-Feed Table

The MRS In-Feed Table has an adjustable crank handle to accommodate different coil widths and the powered belt rollers feed material into the rollformer to be run. It also has the ability to raise and lower to align with the two different profiles on the double deck rollformer.

Pre-Cut Shear

MRS’ unique VFD electric motor drive system allows the shear to cut any length sheet up to 100 feet. The 4-sided shear blades average one year per side, giving it an average four year life on the blade before needing to be re-sharpened. The rollformer can be designed with a pre-cut or post-cut shear. Most of our rollformers are designed with a pre-cut shear, providing a cleaner, smoother cut and reducing the risk of scratching during packaging panels.

Flat Sheet Operation

The in-feed table will raise high enough to run flat sheets over the top and automatically exit the end of the rollformer for one man to stack flat sheets for manufacturing trim and snap-loc.

Change-Over Time

The change-over time between the top deck and bottom deck are approximately 30 seconds. This quick change-over time allows faster production and keeps your machine running.

Signature Coil Reel & Cart

A 6-ton coil reel is included with all Titan Rollforming Lines. The coil reel is equipped with maximum duty bent axis motor and gearbox which drives the coil reel to precision speed. Four arms instead of three allow for a better grip and less damage to the coil.
